DC6-40V 4-Channel Programmable Digital Time Relay Timer Controller Delay Switch Module Independent Timing Cycle LCD Display

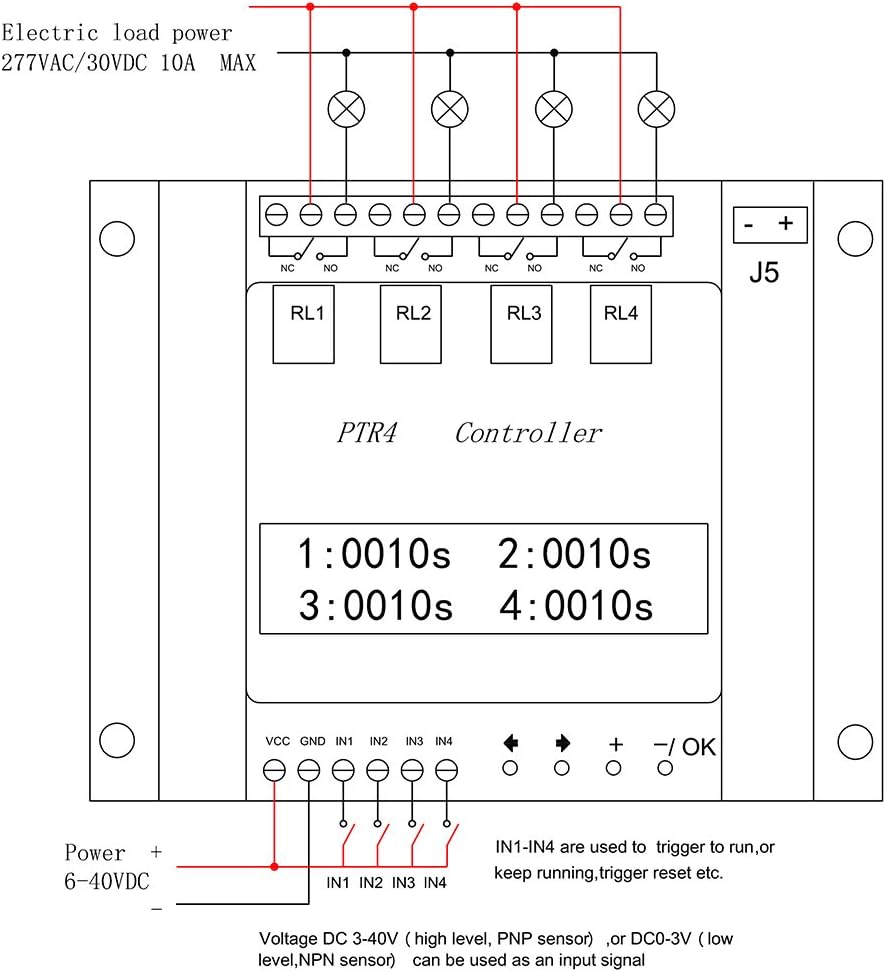

This controller is a 4-channel time relay; each channel of relay can run independently and it also can run in turn. It can be controlled by detecting four channels of input vole signal to control four loads on/off independently or in turn, such as controlling four solenoid valves to work independently or work in turn, controlling four input signal to delay on/off, etc. Specifications: Timing : 0.1s - 9999min Adjustable Cycle: 0 - 9999 times Adjustable Working Power ply: DC6-40V Four Signal Input Impedance > 100K Input Signal Vole : DC0-40V Working Current: When back off current is about 9mA/12V(0.11W) 4 Relays Working Current: about 170mA/12V(2W) Four Set of Conversion(normally open and normally closed) Contact Load: 10A/277V AC or 10A/30V DC Contact Resistance: <=100mΩ (1A 6V DC) al Durability: 10 million Electricity Durability: >100,000 (10A-250V AC) Operating Temperature: -40~85°C Item Size: 11 * 8.5 * 3.7cm / 4.33 * 3.35 * 1.45in Item Weight: 196g / 6.92oz Package Size: 15 * 9.5 * 5cm / 5.91 * 3.74 * 1.97in Package Weight: 248g / 8.76oz Package List: 1 * Relay Module

• Industrial LCD display, 4 keys for easy operation, with rt function.
• High performance microcontroller for high stability, high reliability and low power consumption.
• Four-channel time relay, adjustable timing : 0.1 second to 9999 minutes(countdown), the total number of Loops is adjustable from 0 to 9999( for the infinite loop).
• Reverse power conservation function, ing surge current shock.
