UNI-T Digital Megohmmeter UT501A Insulation Resistance Tester Multimeter, Electrician Megohm Meter, 125V/250V/500V/1000V Test Voltage, 0.01~200Ω Low Resistance Testing, 2000 Counts Auto Ranging

UNI-T is your testing specialist.Since1988, Uni-Trend Technology (China) Co., Ltd has been the developer, manufacturer and marketer of reliable testing, measuring and inspecting products to over 100 countries and regions globally.What you get / UT501A1 x UT501A insulation resistance tester1 x test leads (pair)1 x alligator clips (pair)1 x elastic strap1 x user manual1 x packaging boxWhat you get / UT502A1 x UT502A insulation resistance tester1 x test leads (pair)1 x alligator clips (pair)1 x elastic strap1 x test probes (pair)1 x user manual1 x packaging boxSpecifications / UT501AInsulation resistance (Ω) Test voltages. 100V/250V/500V/1000V.100V. 0MΩ~100MΩ.250V. 0MΩ~5GΩ.500V. 0MΩ~5GΩ.1000V. 0MΩ~5GΩ.Load current. 50V (R=50kΩ) 1mA/100V (R=100kΩ) 1mA/250V (R=250kΩ) 1mA/500V (R=500kΩ) 1mA /1000V (R=1MΩ) 1mA.Short-circuit current <2mAAC voltage (V). 30V~750VSpecification / UT502AInsulation resistance (Ω)Test voltages. 500V/1000V/2500V500V. 0MΩ~5GΩ1000V. 0MΩ~5GΩ2500V. 0MΩ20GΩLoad current. 50V (R=50kΩ) 1mA/100V (R=100kΩ) 1mA/250V (R=250kΩ) 1mA/500V (R=500kΩ) 1mA/1000V (R=1MΩ) 1mA/2500V (R=1MΩ) 1mAShort-circuit current. <2mALow resistance (Ω). 0.01Ω~200Ω (about 5.0V/200mA)AC voltage (V). 30V~600VDAR. 60s/15s and 60s/30s.PI.More featuresDisplay count. 2000Auto range.Low battery indication.LCD backlight.Light alarm.Buzzer alarm.High voltage indication.Over load indication.Auto discharge.Test voltage secondary display.10MΩ internal resistance test.Power. 1.5V battery x6

• UNI-T UT501A insulation resistance tester. Test voltages (100V/250V/500V/1000V). Load current. 50V(R=50kΩ)1mA, 100V(R=100kΩ)1mA, 250V(R=250kΩ)1mA, 500V(R=500kΩ)1mA, 1000V(R=1MΩ)1mA.Measures AC voltage from 30V~750V. 10MΩ internal resistance test
• 2,000 counts & auto ranging. Test short-circuit current<2 mA. Low resistance(Ω) from 0.01 Ω~200 Ω(about 5.0 V/>200 mA.)
• Safe & Durable. UT501A is a reliable model that meets IEC 61557 (61557-1:2007; 61557-2:2007) standards. CAT II 1000V / CAT III 600V. Buzzer alarm. Light alarm. High voltage indicator. Overload indication. Powered by 6 1.5V batteries
• Easy to use & What you get. Test voltage secondary display for easy reading. LCD backlight. Auto discharge. An ideal test instrument for measuring insulation resistance of transformers, transformers, generators, high voltage motors, power capacitors, power cables, lightning arresters, etc

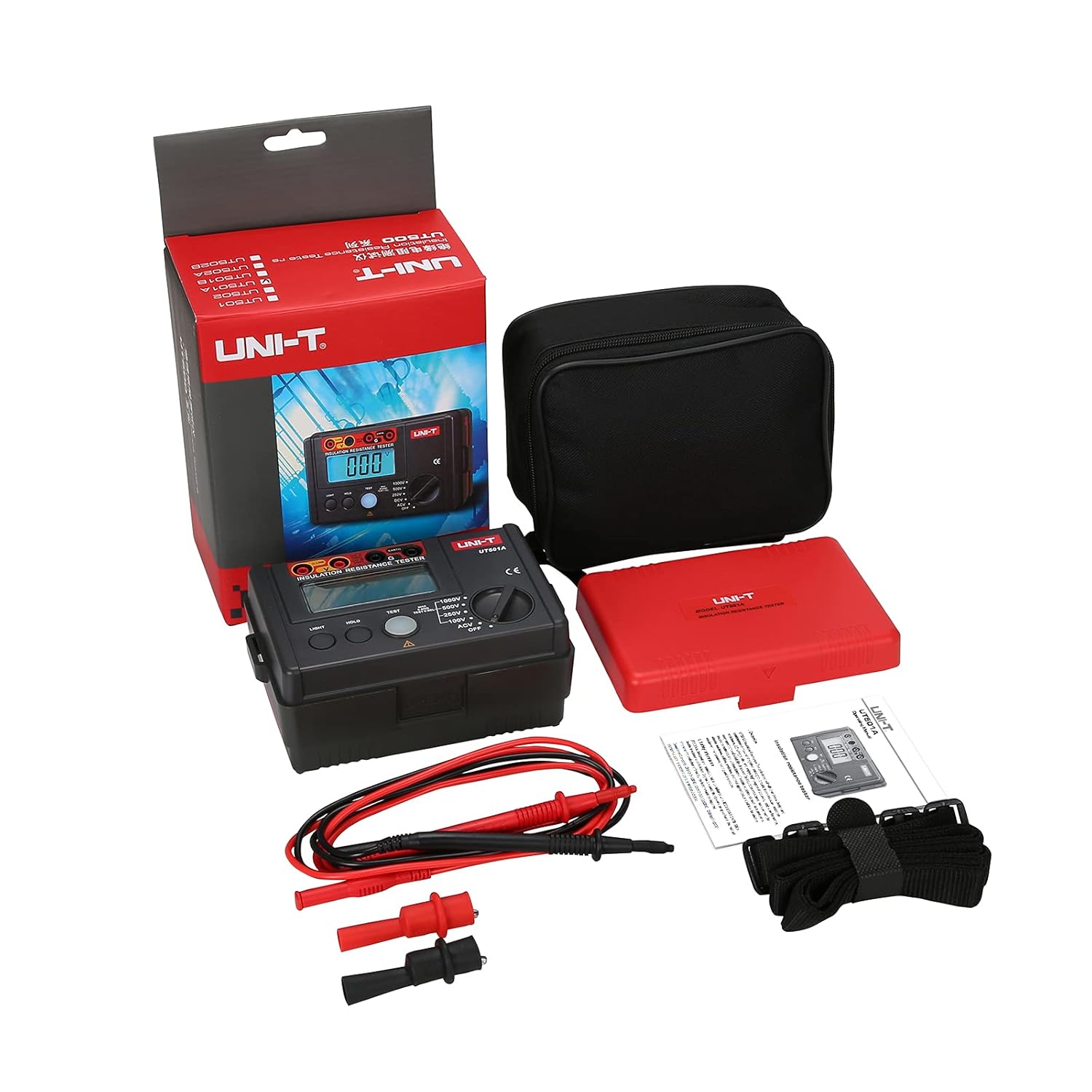

• What you get: 1 x UT501A insulation resistance tester, 1 x test leads (pair), 1 x alligator clips (pair), 1 x elastic strap, 1 x user manual, 1 x packaging box
