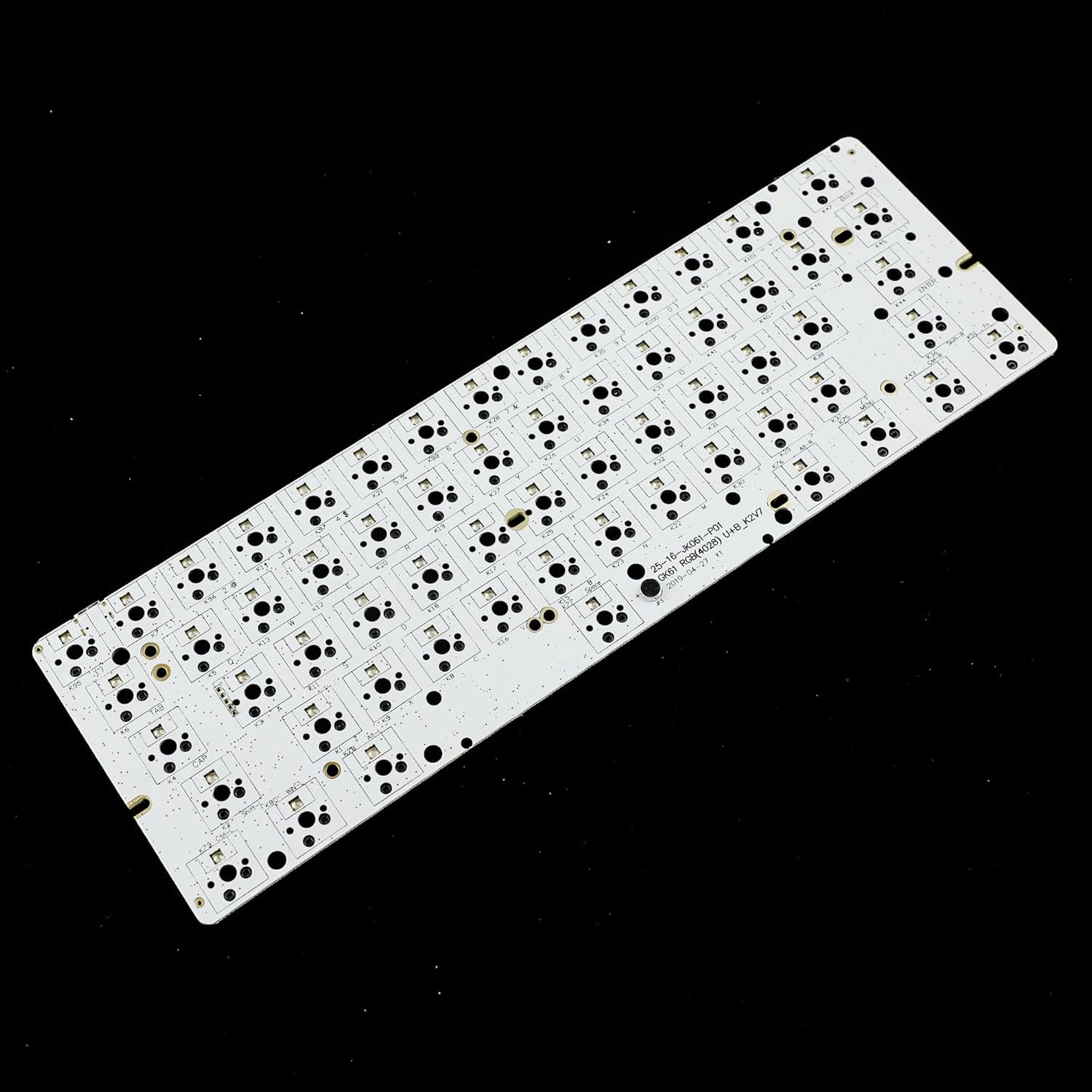

YMDK GK61s RGB Hot Swap Independent Driver Wired Tyce-C ANSI PCB (GK61s Bluetooth Wired)

Package Included 1x GK Type C PCB The GK61s PCB is bluetooth wired dual mode PCB,however we don't put battery inside for shipping issue.You can prepare a 1.25 pin/ Red black wire/polymer lithium battery Details The pcb size is 287x95mm. This PCB is little bigger than new GK64x.It can be used with most GH60 case,such as Tofu60 This PCB is can't use with newest GK case,such as Diamond case. Pls note: This pcb is fully programmable,however Fn sits at the right of bottom row and place can't change. The chipset is MCU 32 bit,8M Flash,3 pcs 256*256*256 RGB drive to support full 16.8 million RGB. PCB has RGB presoldered,it's under per switch.PCB RGB can support by music. PCB is programmable with the software below (Can download on official website) drive.google.com/file/d/1D2G4_r_v9CkQuEf98RXLclmc_bY5L5xr/view?usp=sharing How to install PCB plate kit 1.Install stabilizers at first 2.Mount around 5-6 switches onto plate corners and middle part totally 3.Mount these switches pin to PCB socket totally.After PCB plate fixed,plug other switches in around 90 degree is ok.When plugging you can put PCB onto desk which can avoid big damage when plugging switches. 4.If there is any big resistance when plugging switches,especially when you use kailh switches,don’t put it in forcely.Make sure the switch pin is not bent and the switches is around 90 degree. 5.After plugging switches,if 1 or 2 key not working,check the switch pin whether it’s bent at first.Then check whether the back socket is plugged loose. Even hotswap PCB don’t need to solder as normal,however the socket is easily to be plugged loose or off after many times replacing,so if you can prepare a cheap solder iron in hand,1 hotswap PCB can use for many years.We sold many brand hotswap PCB now,these are experience from many customers.

• This link is v1 GK61s PCB.It's to clear the stock.To program it,please use the software editio
• If you order GK61s please prepare battery yourself.You can prepare a 1.25 pin/ Red black wire/polymer lithium battery
• The pcb size is 287x95mm.It's little bigger than GK61x GK64x.So all GK newest case can't use
• This PCB can be used with most GH60 case,such as Tofu60.
• For GK61,it can only use plate mounted stabilizers.So please only choose the plate which use plate mounted stabilizers
